TDA080-M Automatic Heavy Duty Tape Dispenser with Programmable 5 Length Memory

      Description of TDA 080-M, programmable automatic tape dispenser

The TDA080-M is an electric wide adhesive tape dispenser disigned for intensive and continous industrial production.

Its numerous customizable functions have been designed to adapt to the industrial operator's workstation and simplify his daily and repeated use of adhesives.

• Robust and resistant construction
• Dispenses adhesive tapes from 6 to 80 mm wide
• 5 programmable cutting lengths from 40 to 9999 mm
• Compatible with large diameter rolls with the external large roll holder DM100
• Photoelectric detection cell
• Secure guillotine cut

This automatic industrial tape dispenser has 4 modes of operation:

1. Manual Feed & Cut
2. Manual Feed & Auto Cut
3. Auto Feed & Cut
4. Interval Feed & Cut

It thus adapts to the constraints and work rythm of industrial operators.

      Industrial applications and tapes compatible with the TDA080 M

The TDA080-M is design for industrial operators who require repeated and non-stop dispensing of tape.

It is intended for intensive production lines within demanding industries such as:

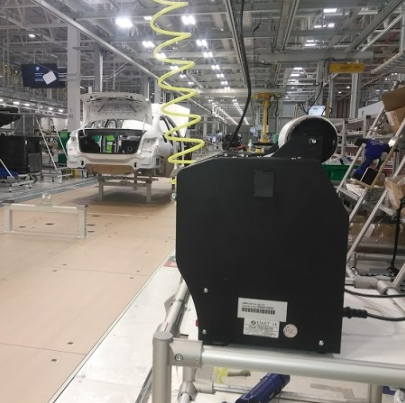

Automotive:

• Body in white: structural adhesive tapes, double-sided acrylic tapes, foil tapes...
• Painting and assembly: masking tapes, permanent paint protection die-cuts, bonding, mounting and transfer tapes, VHB tapes...

Appliance:

• Foaming process applications: venting tapes, cloth tapes, masking tapes...
• Constructive bonding coils and evaporator: foam and double sided tapes, aluminium foil tapes, non-woven tapes...
• Transport and surface protection: strapping tapes, tensilized PP tapes, masking tapes, filament tapes...

      Instructions for using TDA080M memory programs

There are 5 programmable memories and 2 additional modes with the TDA080-M.

PRES (pre-set) mode : You can select memory 1 through 5 and the unit will cut and dispense at the length programmed into the selected memory. Simply select the memory location you want by pressing and releasing the M/reset button.

LOOP mode : Select memory 1 through 5, the unit will start dispensing at the slected memory length and then, with each cut, the unit will automatically sequence to the next programmed length. After reaching the last programmed length, the unit will loop back to memory 1 and start sequencing again.

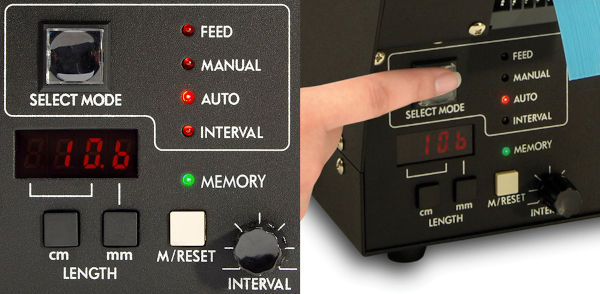

TDA080-M memory programming procedure:

• To enter the memory and mode programming procedure:
  Press and hold the M/Reset button until the display blinks.

• To set a memory length or select the PRES/LOOP modes:
  While the display is blinking, press and hold the white M/Reset button to see the number of the momory location or the PRES/LOOP modes.
  Each press and hold of M/Reset selects the next memory location.
  Release the M/Reset button to see length set in the previsouly dislayed memory location or to change the length set in the previsously displayed memory location.

• To select PRES or LOOP mode:
  While the display is blinking, press and release M/Reset until the display blinks "PRES" or "LOOP".
  Press the mm button to select either PRES or LOOP.

• To exit and save the memory and mode programming procedure:
  Press and hold the M/Reset button while the display is blinking, until the displays stops blinking.

• To review the length settings in the 5 memory locations:
  While the display is not blinking: Press and hold M/Reset to see the first memory location.
  Release the button to see the length set.
  Continue to press the button to review each memory location and release it to review the length set for that location.

• Advanced LOOP mode functions:
  It is not required to LOOP through all 5 memories. You can LOOP through less than 5 memories by setting the unwanted memories to 999.9 cm en utilisant HARD RESET.
  HARD RESET will set memory location 1 to 4 cm and the other memories to 999.9 cm. To perform a HARD RESET, start with machine powered off, press and hold the M/Reset button while turning the machine on.
  After performing a HARD RESET, you may set the length in the desired number of memories by using the set memory length procedure.
  To reset the length in the display to 4 cm at any time, press and hold the mm button and then press the cm button.

      Other TDA080 series models and accessories

The TDA080 series of automatic tape dispensers is available in several models depending on your cutting needs and the type of adhesive used.

Contact us for more information on the most suitable version.

• TDA080-M ("Memory") : The only programmable dispenser from the TDA080 series, with 5 length memory.
• TDA080-NM : For protection and masking films, recommended for aeronautic and automotive industries.
• TDA080-NS : For double sided foam and acrylic foam tapes (VHB type) and high tack tapes (immediate adhesion).
• TDA080-NMNS : Combine the features of the TDA080 NM and NS.

Many accessories are also available to optimize the use of your TDA080.

Examples of accessories:

Demonstration of the DM 100 holder used with the TDA080-M:

      Technical data of the TDA 080 M
